Gold Processing Plant & Equipment
Every item below is designed and fabricated in our own workshop, then installed and commissioned on your site by our crews.
Carbon-In-Pulp
CIP Plants
Customised carbon-in-pulp plants ranging from 40 tonnes to 700 tonnes per day. We supply the complete circuit — feed arrangement, milling, agitation and adsorption tanks, inter-stage screens, pumps, launders, walkways and electrics — built to suit your tonnage and your ore.
- 40–700 tpd, sized to your mining rate
- Adsorption tank banks with inter-stage screening
- Ball mill, hopper and conveyor feed arrangements
- Access platforms, staircases and handrails included
- Skid-mounted and mobile configurations available
| Throughput range | 40 – 700 tonnes per day |
|---|---|
| Process | Carbon-in-pulp gold adsorption |
| Configuration | Fixed, skid-mounted or truck-mounted |
| Scope | Design, fabrication, delivery, installation, commissioning |
Elution
Elution Boilers
High and low pressure elution boiler systems ranging from 300 kg to 2 tons. Supplied complete with electrical control panels, transformers, pipework and thermal insulation — ready to strip loaded carbon and get your gold into solution.
- High pressure and low pressure systems
- 300 kg to 2 ton capacities
- Stainless steel pressure vessels
- Control panels, elements and transformers supplied and wired

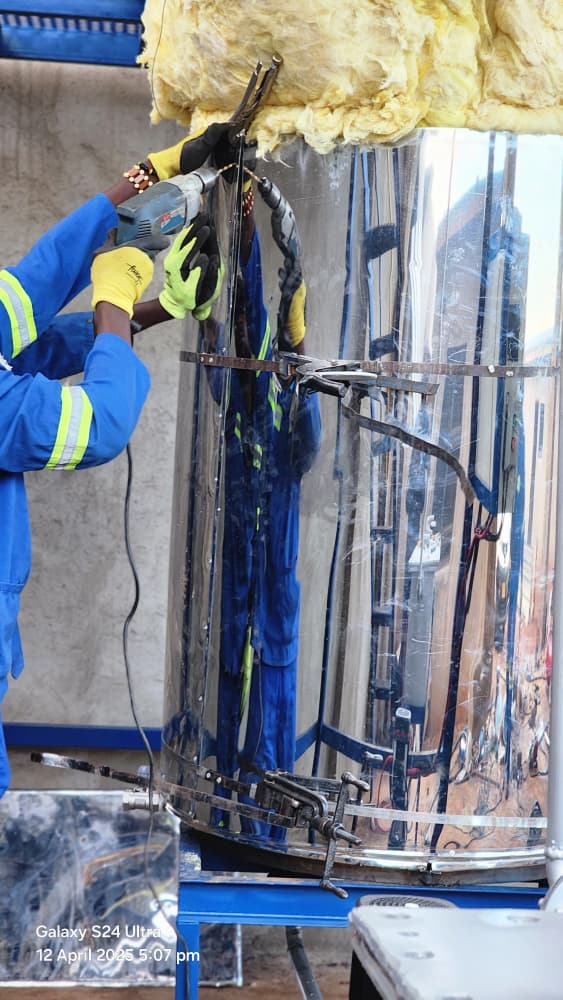

- Full thermal insulation and cladding for heat retention
| Capacity range | 300 kg – 2 tons |
|---|---|
| Types | High pressure & low pressure |
| Supplied with | Control panel, transformer, insulation, pipework |
| Materials | Stainless steel vessel, carbon steel structure |
Comminution
Crushing & Processing Plants
Crushing plants and complete processing plants — jaw crushing, conveying, milling and classification — supplied as fixed installations or mounted on a skid or truck bed for operations that need to follow the ore.
- Crushing circuits with conveyor feed and discharge
- Ball mills and classification
- Complete processing plants integrated with CIP
- Mobile and truck-mounted configurations
- Hoppers, chutes, bins and structural supports
Storage
Storage Tanks
Rolled, welded and tested in our own workshop, to your capacity and your duty.
- Fuel storage tanks — diesel bulk storage for site
- Gold ore tanks — agitation, leach and adsorption duty
- Water tanks — process and raw water storage
- Chemical storage tanks — for cyanide, caustic and reagents
- Insulated and clad where the duty calls for it
Workshop
Steel Fabrication
Our plate rolling machine is a W11–16×2500, equipped with a cone rolling device — so tank shells, cones, hoppers and vessel bodies are all made here rather than subcontracted out.
- Plate rolling to 16 mm thickness × 2500 mm width
- Cone rolling for hoppers and tank bottoms
- Cutting, forming and welding in carbon and stainless steel
- Structural steelwork, platforms and handrails
- General fabrication to your drawings or ours
Supply
Mining Consumables
We supply mining chemicals and related consumables, so the plant we build for you can be kept running from the same supplier.
Activated Carbon
Adsorption carbon for CIP and elution circuits.
Grinding Media
Mill balls and liners to keep comminution on spec.
Spares & Wear Parts
Pumps, screens, valves and wear components.
Ask us for the current stock list and pricing — availability changes with each shipment.
Ready To Size Your Plant?
Tell us your tonnage and your ore, and we will come back with a costed proposal.
